Description

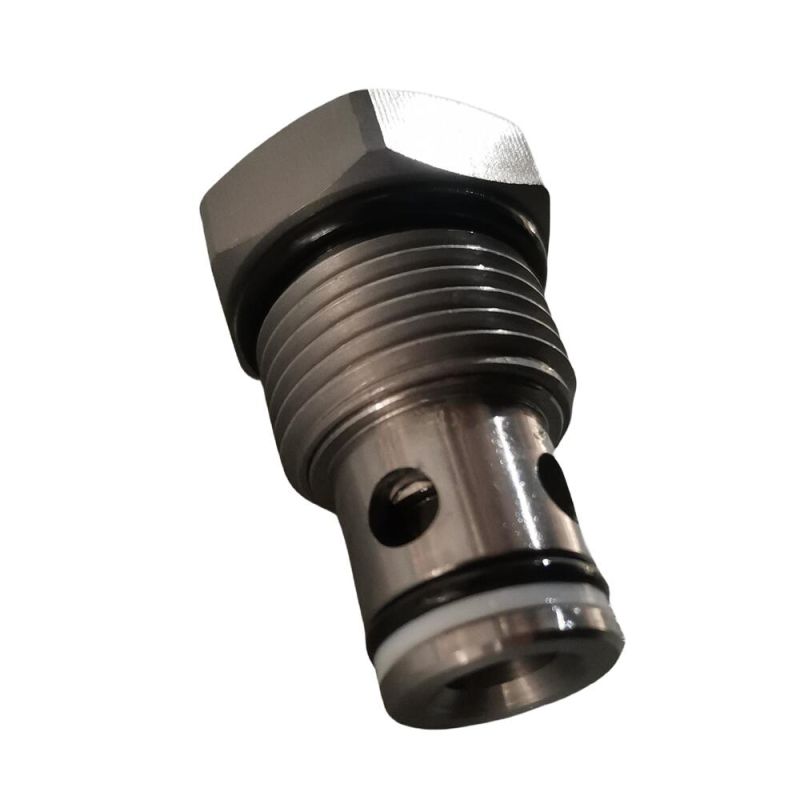

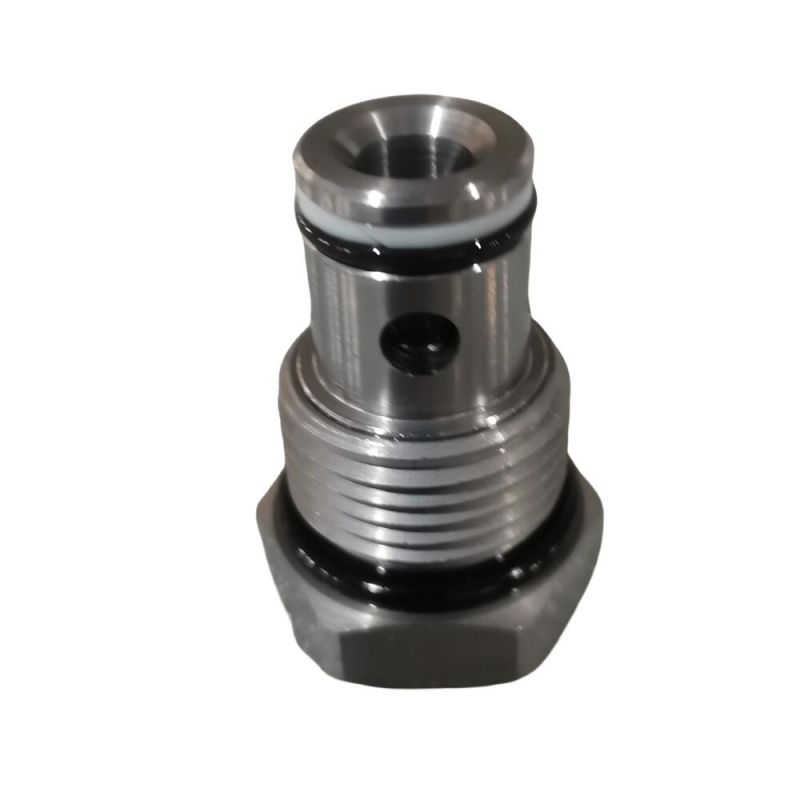

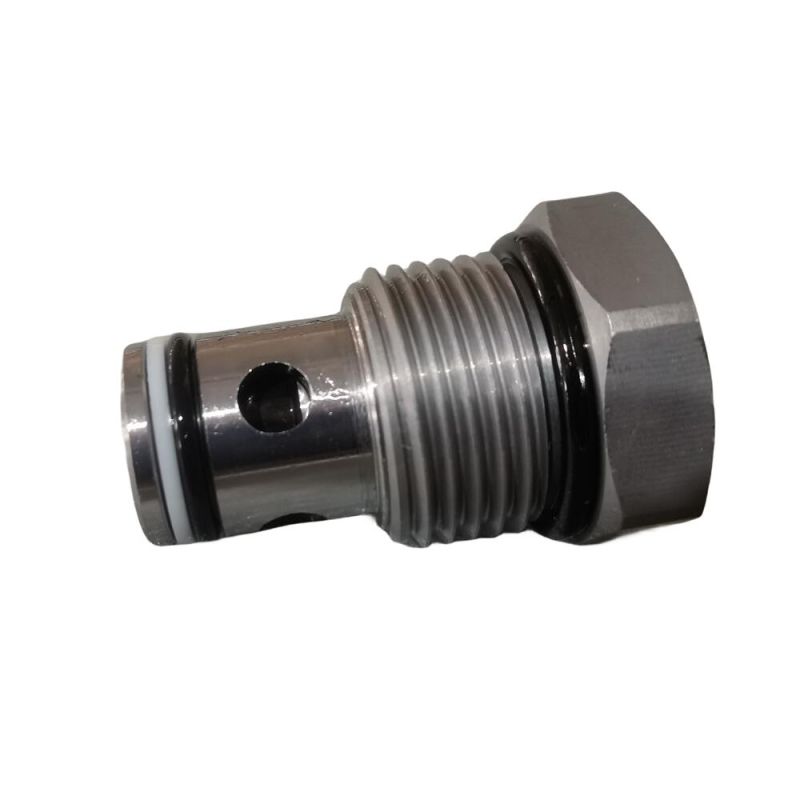

A screw-in, cartridge-style, hydraulic check valve for use as a blocking or load-holding device.
Operation

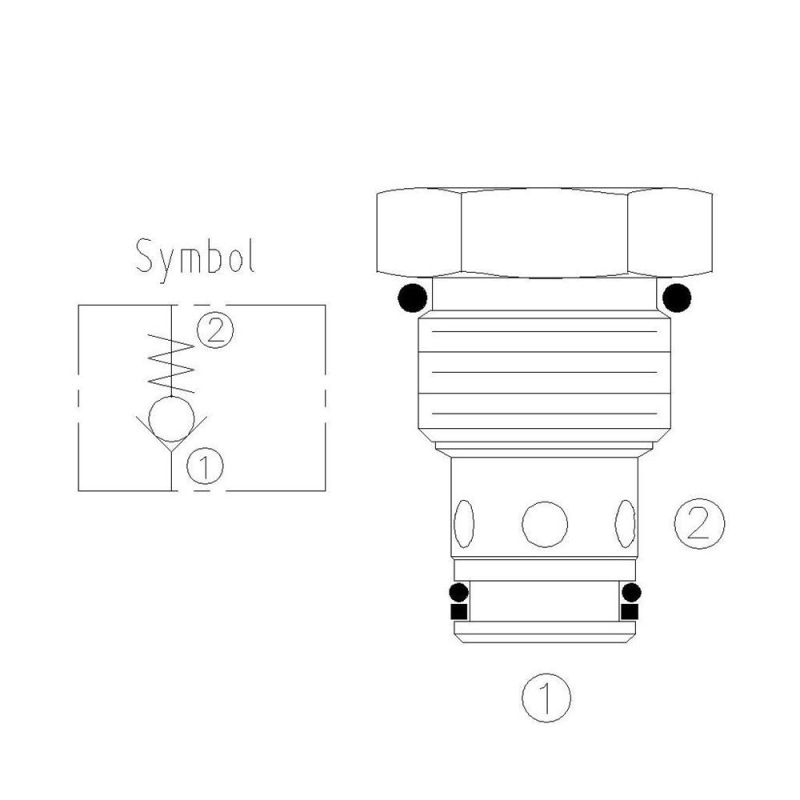

The CV10-20 allows flow passage from ➀ to ➁, while normally blocking oil flow in the opposite direction.
The cartridge has a fully guided check which is spring-biased closed until sufficient pressure is applied at ➀ to open to ➁.
Features
• Hardened seat for long life and low leakage.
• Optional bias springs for back-pressure application flexibility.
• Fully guided check assembly.
• Industry common cavity.
Dimension
Materials
Cartridge:
Weight: 0.08 kg. (0.17 lbs.) Steel with hardened work surfaces. Zinc-plated exposed surfaces.Buna N O-rings and polyester
Standard Ported Body:
Weight:0.16 kg. (0.35 lbs.) Anodized high- strength 6061 T6 aluminum alloy, rated to 207 bar (3000 psi). Ductile iron bodies available; dimensions may differ.
| Rated Flow | 57 lpm |
|---|---|
| Temperature | -40℃~120℃ |
| Internal Leakgage | 0.10cc/min |
| Type of Pin | Ball |
| Cavity | VC10-2 |
| Installation Torque | 32-35Nm |
| Filtration | 20um or better |
| Product Family | Directional Control Valves |
| Fluids | Mineral-based or synthetics |
| Viscosities | 7.4 to 420 cSt |
| External Component Treatment | Zink-plated |
